Proving Cyclic Quadrilaterals and Right Angles: A Problem from the Singapore Math Olympiad

In this video, we explore a challenging geometry problem from the Singapore Math Olympiad (Senior Section, Round 2). The problem involves a square, a randomly chosen point on one of its sides, and various perpendiculars and intersections leading to the proof of a right angle. Let’s break down the key concepts used to arrive at the solution.

Problem Overview:

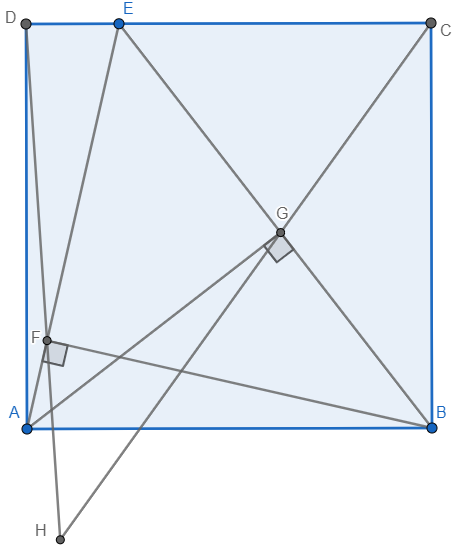

• We are given a square \(ABCD\) and a point \(E\) on side \(CD\).
• We draw \(\triangle AEB\) and drop perpendiculars from points \(A\) and \(B\) onto the opposite sides \(AE\) and \(BE\), with the feet of these perpendiculars being points \(F\) and \(G\), respectively.
• We then join \(DF\) and \(CG\), which intersect at point \(H\).
• The goal is to prove that the \(\angle AHB\) is \(90{^\circ}\).

Watch the Video

Key Concepts Used:

• Cyclic Quadrilaterals and Concyclic Points: The proof involves showing that multiple points lie on a common circle. The cyclic nature of quadrilaterals helps us determine certain angle relationships that are key to solving the problem.
• Angle Chasing: The solution involves a careful examination of angles formed by different line segments and using the properties of cyclic quadrilaterals to establish relationships between them.
• Concyclic Conditions: Since points \(A\), \(F\), \(O\), \(G\), and \(B\) (where \(O\) is the center of the square) are concyclic, it follows that the angles subtended by these points must add up to \(180{^\circ}\). This property helps prove that \(H\) lies on the same circle.

Step-by-Step Proof Summary:

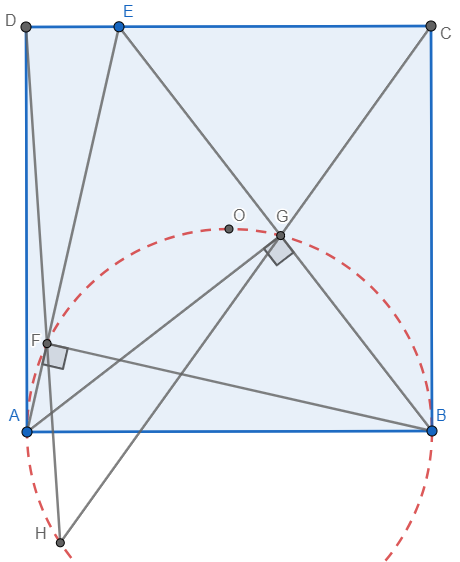

1. Establish Concyclic Points: We first construct the circumcircle of \(\triangle AFB\) and show that it passes through point \(G\), making \(A\), \(F\), \(O\), \(G\), and \(B\) concyclic.
2. Use Angle Properties: By analyzing the angles subtended by the chords, we establish that the angles at the circumference involving these points are equal, ensuring concyclicity.
3. Prove Point \(H\) Lies on the Circle: By showing that points \(F\), \(D\), \(E\), and \(O\) are concyclic, and performing a similar analysis on the other side of the square, we conclude that point \(H\) must also lie on the circumcircle.
4. Conclude with the Right Angle: Since point \(H\) lies on the circle whose diameter is segment \(AB\), the \(\angle AHB\) must be \(90{^\circ}\) by the inscribed angle theorem.

This solution beautifully illustrates how advanced geometry concepts like cyclic quadrilaterals, concyclicity, and angle chasing can be used to solve complex problems involving right angles and perpendiculars.

Motivation and Exploration:
The video also discusses the motivation behind defining certain points and relationships, such as the center of the square. Experimentation, including transformations like inversion, can often reveal hidden properties and relationships in geometry. This problem is an excellent example of how problem-solving in geometry is as much about exploration and insight as it is about formal methods.
